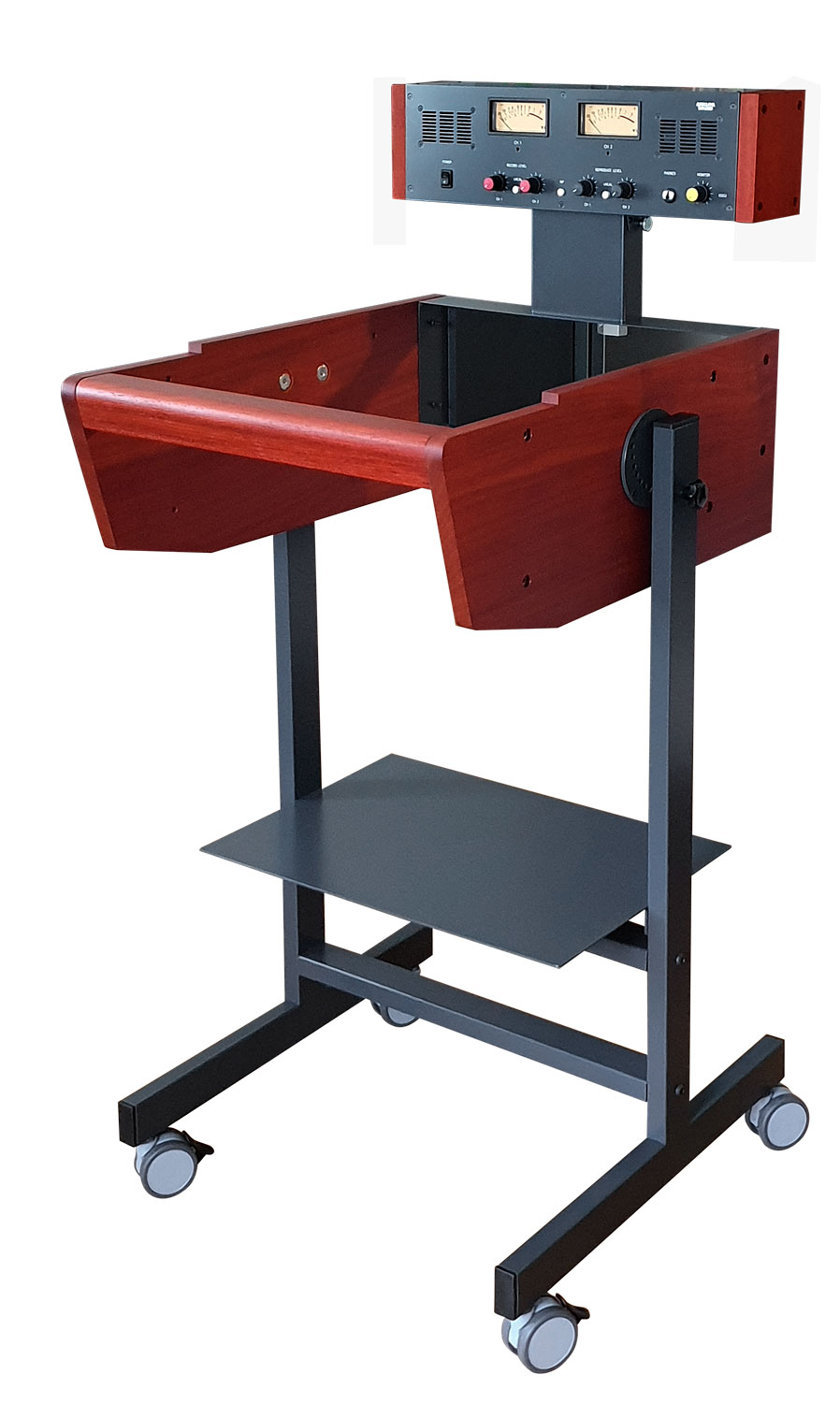

This is a New Custom Made Cart Stand (machine is NOT part of the sale and for display purposes only). Hand crafted, can be easy assembled or disassembled. Made of durable 2.0 steel tubing – it can bare a load of more than 200 kg. Very durable and stable – T-bars are welded and bolted together with crossbars with 8mm bolts. Powder coated in the tone of “Studer Grey” (colour code RAL 7016)
The VU meter indicator circuitry is a modified replica of the Studer A810 (also A812, A816) including a switchable standard VU meter mode and a peak program meter (PPM) mode. In addition, there is a switch to increase the sensitivity by 10dB. -10 VU mode is also useful when calibrating the recorder with a test tape where tones are recorded at a level of -10 dB below nominal and you do not have external audio frequency VU meter.
Our Mark 5 version has built in oscillator – generator of 1khHz and 10kHz sinus test tones for testing and calibration. Linear power supply available as option.
Unit’s “0” value for VU meters is calibrated to “normal” Studer (studio standard) level – +4dB. “0” level can be adjusted to other values – if you want so.
All parts are top quality, schematics used are from top manufacturers. Operational Amplifiers are exchangeable – mounted in sockets. We use Texas Instruments INA137PA, DRV134PA.
In the input and output sections are additional RCA sockets. You can connect signal source which does not have XLR sockets.
Bracket of the meter bridge attaches to the existing attachment points (screw holes) of the recorder. This meter bridge does not require special side panels. Meter Bridge can be used either with original Studer stand or without stand – as a table top version. Connection wires can be hidden in the vertical post of the bridge. Connection to the signal source can be done either with RCA or XLR connecting wires.
We provide WORLDWIDE shipping with TRACKING NUMBER.
| Specifications | |
| Analogue inputs (unbalanced) | RCA pin jacks |
| Nominal input level | -10 dBV (0.316 Vrms) |
| Maximum input level | +10 dBV (3.16 Vrms) |
| Input impedance | > 50 kOhm |
| Analogue inputs (balanced) | XLR-3 (1: GND, 2: HOT, 3:COLD) |
| Nominal input level | +4 dBu (1.23 Vrms) |
| Max increase of the input sensitivity (UNCAL) | 15 dB |
| Maximum input level | +24 dBu (12.3 Vrms) |
| Differencial input impedance | 24 kOhm |
| Analogue outputs (unbalaced) | RCA pin jacks |
| Nominal output level | -2 dBu (0.615 Vrms) |
| Maximum output level | +18 dBu (6.15 Vrms) |
| Output impedance | 100 Ohm |
| Analogue outputs (balanced) | XLR-3 (1: GND, 2: HOT, 3:COLD) |
| Nominal output level | +4 dBu (1.23 vrms) |
| Max increase of the output gain (UNCAL) | 15 dB |
| Maximum output level | +24 dBu (12.3 Vrms) |
| Output impedance | 100 Ohm |
| Audio performance | |
| Frequency response | 10 Hz – 50 kHz, ±0.1 dB |
| Distortion (THD) | -105 dB or less |
| Distortion Plus Noise (THD + N) | -90 dB or less |
| Test generator | |
| Frequency | 1 kHz & 10 kHz ±1% |
| Distortion (THD) | < -40 dB |
| Power supply and other specifications | |
| Impulse power supply | AC 100–240 V, 50/60 Hz |
| Linear power supply | AC 220-230V, 50/60 Hz |
| Power consumption | 10 W |
| Dimension (W x H x D) | 440 mm x 132 mm x 130 mm |
| Weight | 2.7 kg |
|
Please allow two weeks for manufacturing. It is possible to order different wheels, stand color and bar diameter – please contact us if interested!
Write if you have any other questions – we can make any cart stand and dust cover for your specs! |
 |
   |
   |
      |
Internal block diagram
Connection example
Measurements
