New LED VU Meter Bridge + side panels for Studer A807, A810, A67, B67, C37 rec.

780.001,030.00

Clear
SKU: STAND-WITH-METER-BRIDGE-STUDER-1-1 Categories: , Tags: , , ,

Description

LED Meter Bridge Unit with Side Panels  for Record Level Control and Monitoring
for Studer A807 A810 B67 A67 etc
Reel to Reel Recorders
!!Machine is for display purposes and is NOT part of the sale!!
Description:

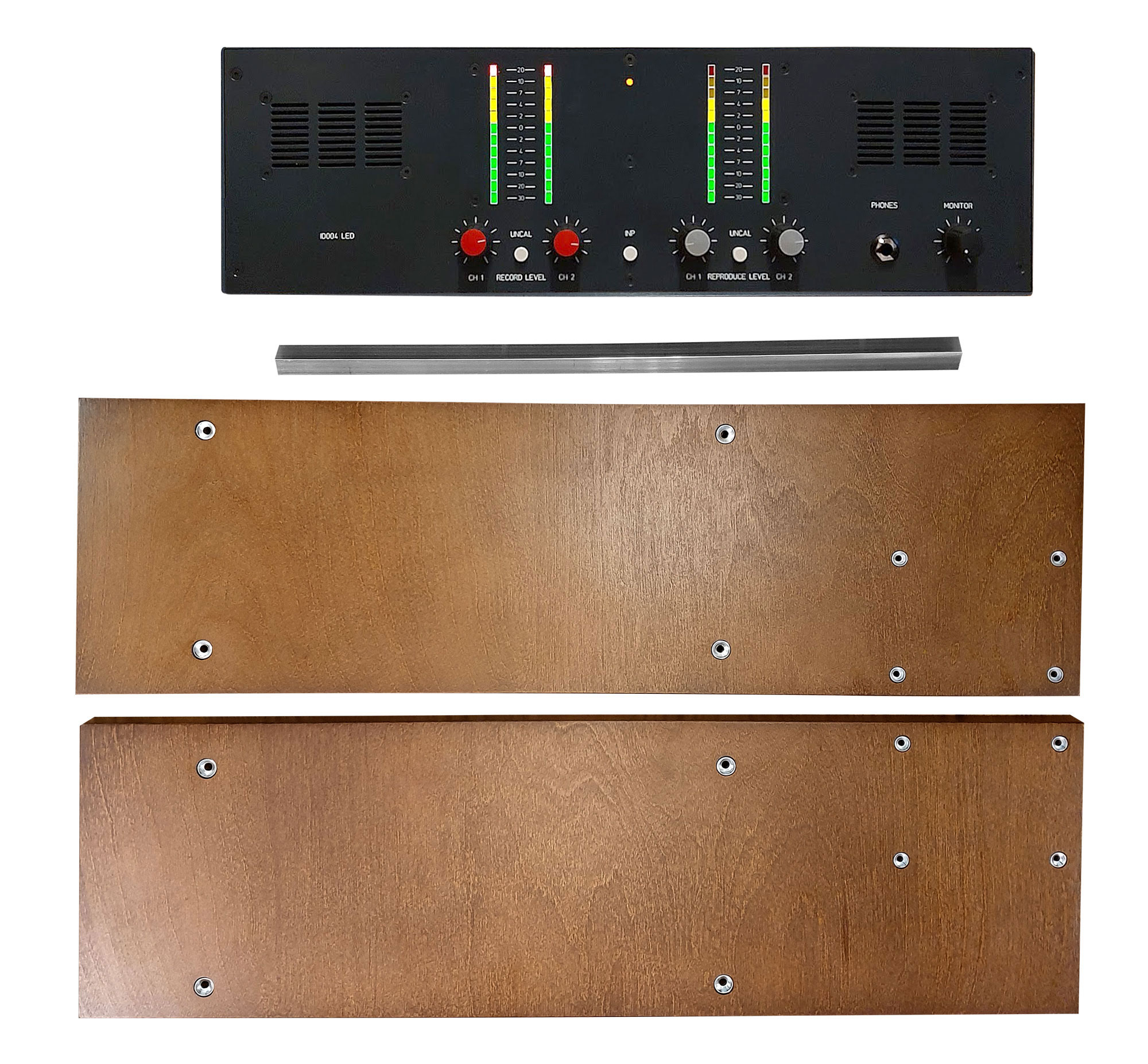

This is a SET of LED meter bridge unit with side panels – side panels are made so that you can choose either TOP or Bottom position  of the LED meter bridge

We offer different veneer and wood types for side panels, also Black Piano Finish

Pleas contact us for options of exotic wood or veneered panels – the additional cost for different wood/ veneer types is in the range of 20-100 USD

This 3U LED VU unit is suitable to any Studer Reel to Reel machine – or any other recorder – which comes without VU meters to enable control and monitor of recording and playback levels. Ensures calibrated and un-calibrated level control modes of recording and playback. In principle it works as a studio console.

4  LED bars enable to monitor simultaneously the input and output levels for both channels.

The VU meter indicator circuitry is a modified replica of the Studer A810 (also A812, A816) including a switchable standard VU meter mode and a peak program meter (PPM) mode.

Unit’s “0” value for VU (LED) meters is calibrated to “normal” Studer (studio standard) level – +4dB. “0” level can be adjusted to other values – if you want so.

All parts are top quality, schematics used are from top manufacturers. Operational Amplifiers are exchangeable – mounted in sockets. We use Texas Instruments INA137PA, DRV134PA.

In the input and output sections are additional RCA sockets. You can connect signal source which does not have XLR sockets.

Please see our separate listing – VU https://www.ebay.com/itm/133448334603 unit in Meter Bridge configurations – full setup with a stand (trolley) – and side panels with a bracket – like original Studer – trolley/meter bridge version. Stand is very durable and solid – made from 2mm steel tubing. Adjustable from horizontal to vertical position in 15 deg increments. Factory powder coated in “Studer Grey” RAL 7016 yet can be coated in any RAL color. Three standard colors are Studer Grey RAL 7016, Black RAL 9005 and Metalic Aluminium RAL9006.

Additional information

Weight 5 kg
Bracket

No, Yes

Model

A-807, A-810, A-812, A-820, A-80, B-67, Other

Color

Black, Grey, Silver, Other
